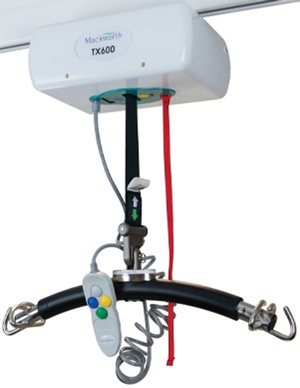

TX600

Product Features

  • Low Profile – Low profile ceiling lift with 78.74” (2000mm) lifting range.
  • Wet Rooms & Bathrooms – Ideal for use in wet rooms and bathrooms.
  • Smooth High Torque Motor – Smooth running lifting tape and high torque motor, with powered traverse option available.
  • Lift Capacity – Transfer patients up to 600 lbs.
  • Discreet Design – Unobtrusive design which doesn’t take up floor space or cause trip hazards, and is complete with in-track charging point.
  • TX600 Specifications
    Lift Motor:24 VDC
    Traverse Motor (optional at time of purchase):24 VDC
    Charger Input:100-240V AC 50/60Hz 1.5A
    Charger Output:24 VDC/1.0 A
    Batteries:24 VDC (2x 12 VDC) 5.0 Ah (SLA)
    Lift Case:Flame Retardant ABS
    Lift Case Degree of Protection:IP21
    Handset Degree of Protection:IP67
    Operation:Handset (Pneumatic)
    Sound Level:54 dB(A)
    Traverse Speed (SWL) 1, 2, 3, 4:1.58 “/s (40.12 mm/s), 3.87 “/s (98.24 mm/s), 5.90 “/s (150.00 mm/s), 7.75 “/s (196.88 mm/s)
    Traverse Speed (No Weight) 1, 2, 3, 4:1.79 “/s (45.48 mm/s), 4.11 “/s (104.34 mm/s), 6.23 “/s (158.32 mm/s), 7.87 “/s (200.00 mm/s)
    Traverse Stopping Distances (SWL) 1, 2, 3, 4:0.24″ (6 mm), 1.22″ (31 mm), 2.28″ (58 mm), 3.31″ (84 mm)
    Traverse Stopping Distances (No Weight) 1, 2, 3, 4:0.24″ (6 mm), 1.22″ (31 mm), 2.36″ (60 mm), 3.50″ (89 mm)
    Traverse Duty Cycle:25% use, 75% rest (90 seconds use, 270 seconds rest)
    Lifting Speed (SWL):1.16 “/s (29.52 mm/s)
    Lifting Speed (No Weight):2.54 “/s (64.52 mm/s)
    Lowering Speed (SWL):2.14 “/s (54.48 mm/s)
    Lowering Speed (No Weight):2.39 “/s (60.75 mm/s)
    Stopping Distances Up (SWL):0.39″ (10 mm)
    Stopping Distances Up (No Weight):0.94″ (24 mm)
    Stopping Distances Down (SWL):1.54″ (39 mm)
    Stopping Distance Down (No Weight):1.30″ (33 mm)
    Raising/Lowering Duty Cycle:15% use, 85% rest (90 seconds use, 510 seconds rest)
    Emergency Down Stopping Distance (SWL):1.54″ (39 mm)
    Emergency Down Stopping Distance (No Weight):1.38″ (35 mm)
    Battery Capacity for Raising/Lowering (SWL):35 Lifts (Top 500 mm of Lift Tape)
    Battery Capacity for Raising/Lowering (200 kg / 440 lbs.):60 Lifts (Top 500 mm of Lift Tape)
    Battery Capacity for Raising/Lowering (100 kg / 220 lbs.):
